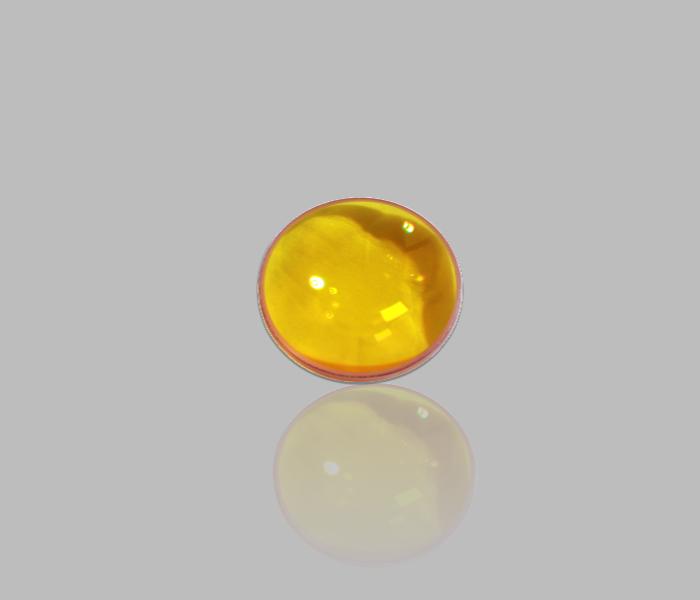

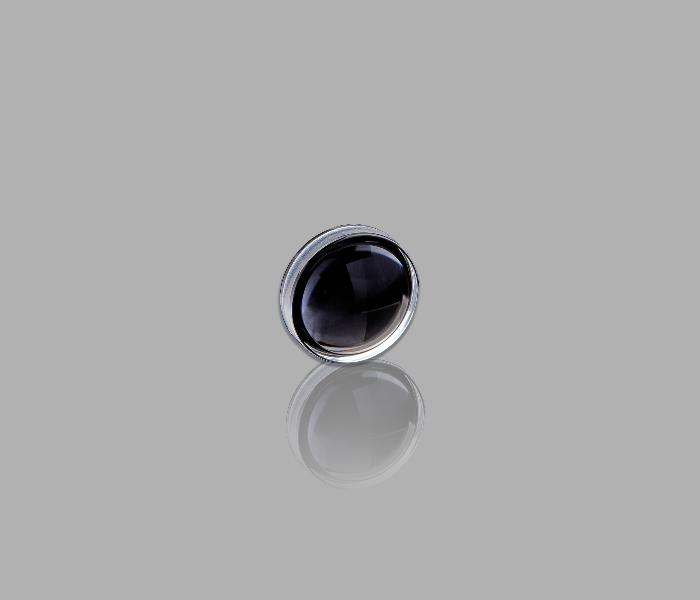

Infrared Optics For Remote Sensing Thermal Imaging And Night Vision

  • Ge, ZnSe, Si, CaF2, Chalcogenide glass, Cu, Al materials optional
  • Short, Mid and Long Waves available
  • Diameter from 5mm~250mm
  • Customized coating film

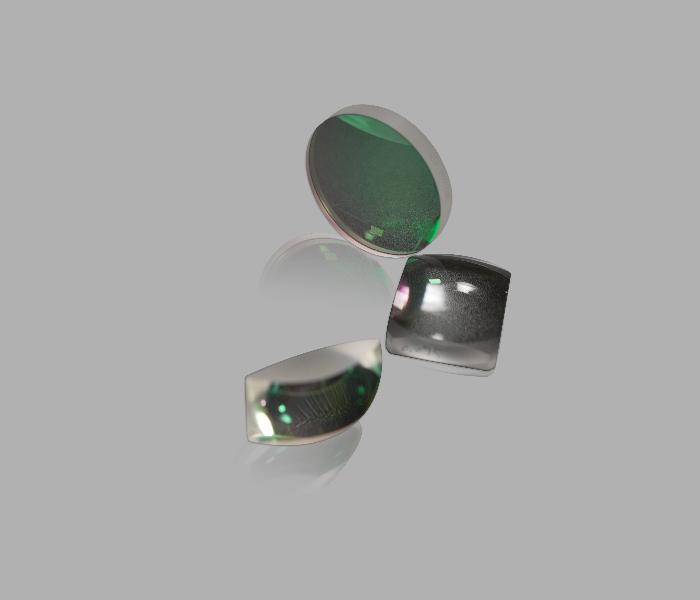

Infrared Optics For Remote Sensing Thermal Imaging And Night Vision





  • Capacity>5500pcs/month
Parameters Commercial  Quality Precision Quality High Precision Quality
Material Ge, ZnSe, Si, CaF2, Chalcogenide glass, Cu, Al... ...
Diameter 5mm~200mm
Size Tolerance +/-0.05mm +/-0.02mm +/-0.01mm
Center Thickness Tolerance(CT) +/-0.05mm +/-0.03mm +/-0.015mm
Surface Quality (S/D) 80-50 60-40 40-20
Irregularity (Plano Surface) λ λ/2 λ/4

FORM ERRORΔ

(Aspherical Surface)

±0.5um ±0.25um ±0.1um
Centration 6‘ 3’ 1‘



  • Process Equipments:

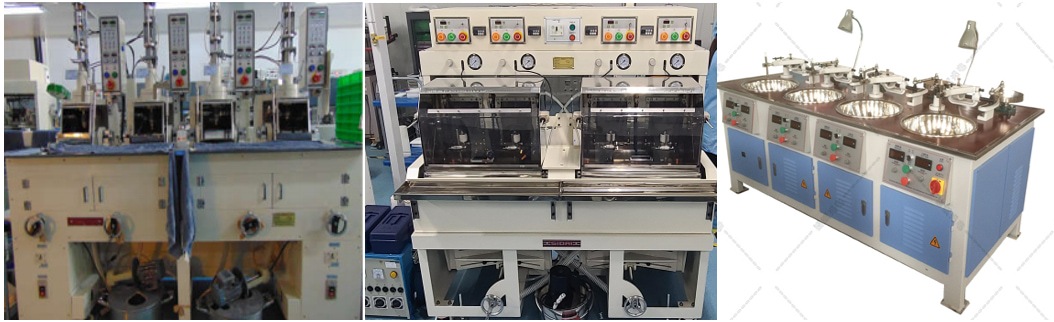

High/Conventional/Low Speed Polishing Machines

Function: High surface quality IR optics manufacturing

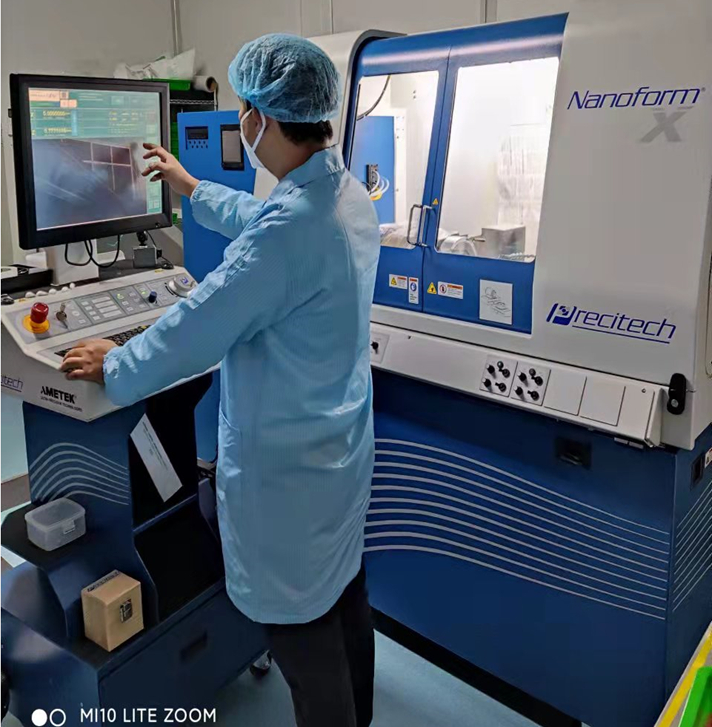

SPDT Process

Function:

  • Infrared Optical lens manufacturing are including (Spherical lens, Aspherics, Diffraction surface, Free Form etc.)
  • Materials are usually Ge, Al, Cu,Si and ZnSe.

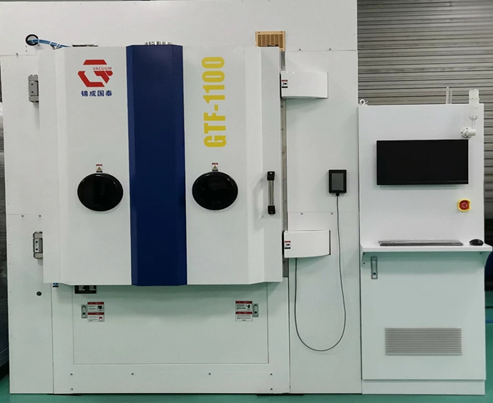

Infrared Coating Machines

Function: AR and HR coating films

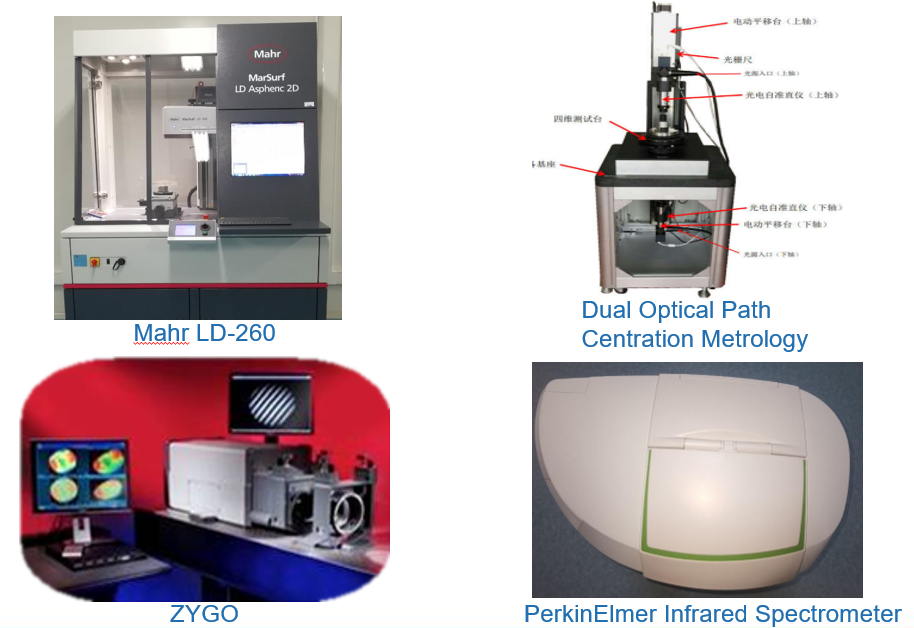

  • Infrared Optics Metrology:
