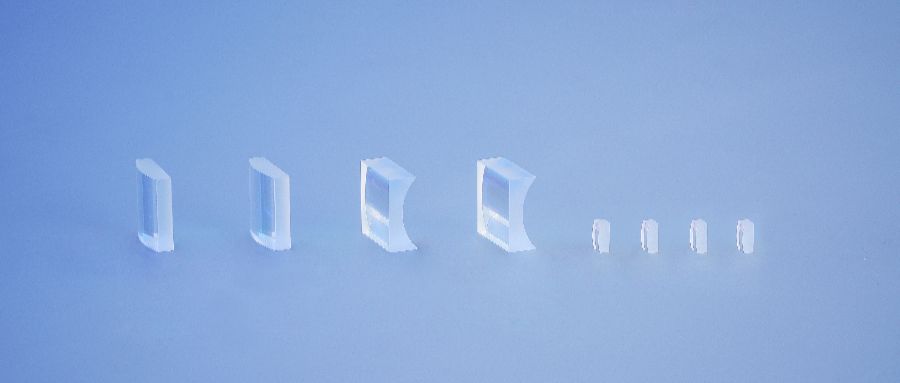

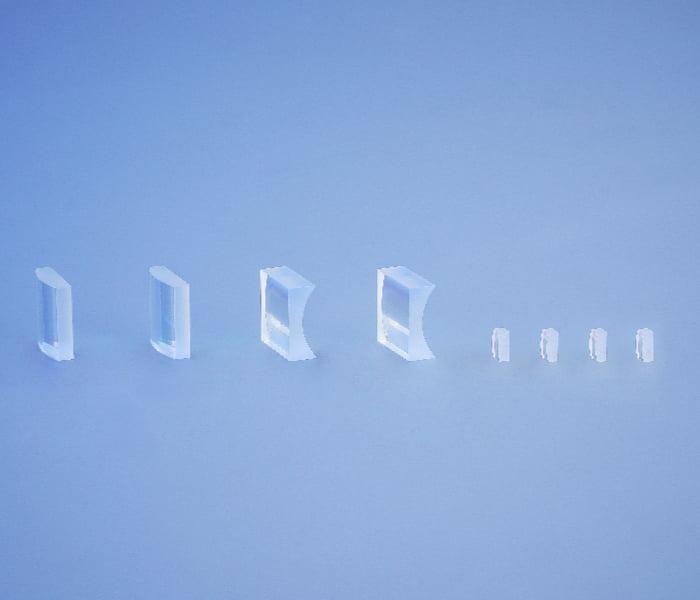

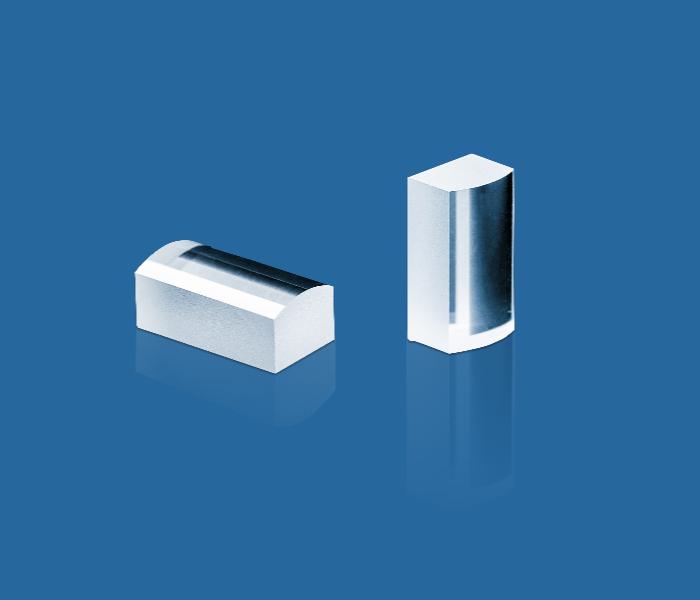

Hitronics is the No.1 supplier of Cylindrical lens in the global market with capacity more than 3 millions per month. The series of products are full in styles:
品牌:
Hitronics
|
Parameters |
Commercial Quality |
Precision Quality |
High Precision Quality |
|
Length (L) |
1mm ~ 450mm |
||
|
Width (W) |
1mm ~ 300mm |
||
|
ROC |
1.5mm – 30000mm |
||
|
Size Tolerance |
+/-0.2mm |
+/-0.05mm |
+/-0.01mm |
|
Center Thickness Tolerance (CT) |
+/-0.2mm |
+/-0.05mm |
+/-0.02mm |
|
Surface Quality (S/D) |
60/40 |
20/10 |
10/5 |
|
Irregularity |
λ/4 |
λ/8 |
λ/20 |
|
Irregularity (Cylindrical Surface) |
λ/2 |
λ/4 |
λ/8 |
|
Coatings |
According to customers' requirements |
||
With industry-leading reliability, high transmission and sensitivity, steep edges, and exceptional blocking ranges and longer life, and lower cost.
Flat Optics Flow Through Quartz Cuvettes are widely used in Hemocytometer, Flow Cytometry, Spectroscopy, Urine Analyzer and Cell Counter and other Life Science Instruments. Hitronics is the top one manufacture providing super stability, maximum precision and reliability cuvettes for the global customers for your individual applications.
High Precision Optical Reflecting Deflecting Displacement Rotation and Dispersion Prisms are choosen by Microscopes, Optical Instruments, Binoculars, Telescopes, Periscopes, Surveyring equipements and many sophisticated Scientific Instruments including Interferometers, Spectrophotometers and Fluorimeters.
A new design of polarization prism system has many advantages, including low loss, high isolation, compact construction and convenient adjustment.
Good coating durability increasing the life time when cycling use High power options High refectivity is more than 99% Customized are available
Ge, ZnSe, Si, CaF2, Chalcogenide glass, Cu, Al materials optional Short, Mid and Long Waves available Diameter from 5mm~250mm Customized coating film
