日本語1.5um Solid Q-switched Fiber Laser For Rangefinder
- Ultra-compact Size
- Long-distance Rangefinder 15KM
- Eye-safe
- Low Cost
品牌:
Hitronics
品牌:
Hitronics

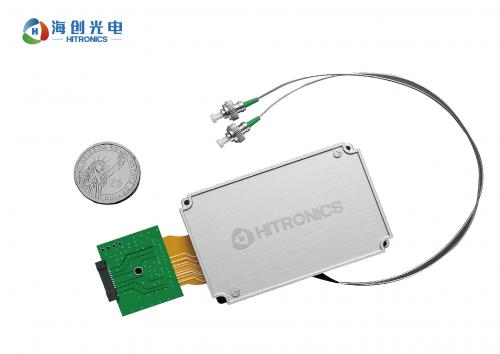

Hitronics 1.5um passive Q-switch laser module, its specifications are single pulse energy 100uJ, pulse width 4ns, peak power 25Kw, repetition rate 10Hz, operating temperature -40℃~+60℃.
With our own patent technology, it is the highest single pulse energy of available commercial laser in current domestic market. Its high peak power, wide operating temperature and compact size are particularly suitable for the range finder system of laser.
According to customer’s requirement of different beam divergence, we’ll provide different optical module matching.
Features: Applications:
|
|
车规级认证--ISO 16750/IEC 60068和ISTA 3A 小尺寸: ≥50*55*19mm3 人眼安全 温度范围: -40°~105° 2022年一大批量交付 低功耗: < 10W 测距: 200~1000米
小尺寸: ≥50*70*19mm³ 人眼安全 温度范围: -40°~105° 已批量交付 低功耗: < 13W 测距: 200~1000米
小尺寸: 80*49.5*20mm³ 高功率：4KW 人眼安全 温度范围: -40°~85° 低功耗: < 40W 低信噪比:＜5%@250kHz, 3ns
小尺寸: 80*49.5*20mm³ 人眼安全 温度范围: -40°~85° 低功耗: < 60W 低信噪比:＜5%@250kHz, 3ns
